CL3C Series EtherCAT Bus

CL3C Series EtherCAT Bus

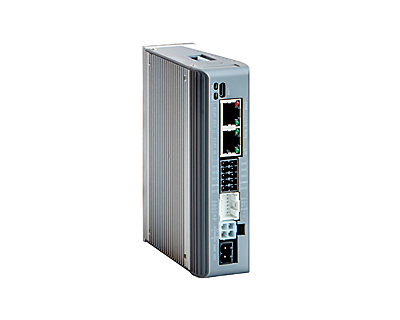

CL3C series is our self-developed economical high-speed bus closed-loop stepper drive products. It supports the CANopen over EtherCAT (COE) protocol, conforms to the CiA402 standard, the bus transmission rate can reach 100Mb/s, and supports CSP, PP, PV, HM control mode, which can realize the real-time control and data transmission of the closed-loop stepper system. For multi-axis closed-loop control networks, the use of efficient, stable and mature EtherCAT industrial bus solution can bring customers significant optimization of space, cost and system complexity.

Features

l Support COE (CiA402 protocol)

l Compatible with most EtherCAT master stations on the market

l Closed-loop control, high-speed operation without losing steps

l Replace servo in low-speed applications, reducing costs by more than 60%

l 6-channel digital input, can be connected to the origin, limit and other input signals

l 2-way digital output, can receive alarm, brake and other output signals

l Suitable for 20, 28, 35, 42, 57, 60 frame motors

l Supply voltage range 24-48Vdc, maximum output current 3A/7A

typical application

The CL3C series can be widely used in various automation scenarios, such as lithium batteries, photovoltaics, 3C and non-standard automation, semiconductors, logistics, lasers, stage equipment, etc.

Support COE (CiA402 protocol)

Support CSP, PP, PV, HM control modes

Compatible with most EtherCAT masters on the market

Closed-loop control, high-speed operation without losing steps

More cost-effective
