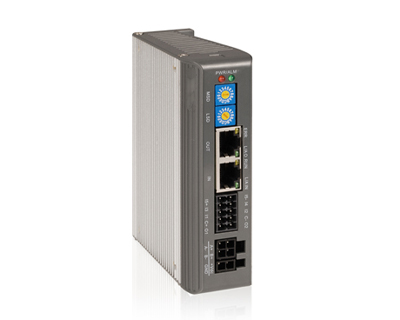

DM3E Series

DM3E Series

High-performance bus DM3 series driver adopts 32-bit DSP processor and supports standard EtherCAT communication protocol to realize real-time control and real-time data transmission of the stepping system, and the fieldbus transmission rate can reach 100Mb/s. It can automatically generate control parameters for different motors to maximize motor performance, and its various control modes and industrial bus options bring customers significant optimization and reduction of space, cost and system complexity.

Officially passed the ETG Association consistency test

Support CoE (CiA 402 protocol)

Fully digital DSP algorithm

Smooth operation and anti-resonance

Reduce costs by more than 60% compared to servo

Features

Adopting 32-bit DSP technology, it has high cost performance, good stability, and excellent noise and vibration performance.

Supports standard EtherCAT protocol and is compatible with common EtherCAT communication masters on the market.

Supports CSP, PP, PV, and HM modes.

Provides configurable alarm/position output interface.

Optocoupler isolation signal input, strong anti-interference ability;

According to the running characteristics of the motor, different anti-vibration strategies are adopted at low speed and medium speed to ensure the smooth running of the motor in the full speed range;

Automatic identification of motor parameters and automatic setting of control parameters. Control parameters can be automatically generated for different motors to maximize the performance of the motor.

Built-in micro-step subdivision algorithm to achieve low-subdivision control instructions and high-subdivision operation effects;

Low heat, no lost steps, smooth operation and strong acceleration capability.

High reliability, providing overvoltage, overcurrent and other protection functions.

Application Areas

Compared with traditional stepper drives, this drive is particularly suitable for applications in long-distance, multi-axis linkage situations. It can reduce wiring and enhance the reliability of drive operation, such as lithium battery production lines, engraving equipment, laser equipment, electronic processing equipment, stage equipment, medical equipment, robots, etc.
