Special servo

Special servo

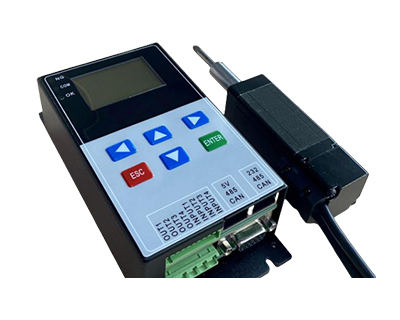

The servo tightening controller uses a low-voltage DC servo motor and a driver rod to lock the screws. It has a built-in high-precision current sampling device and absorbs the screw locking algorithms and processes of domestic and foreign counterparts. It has excellent performance, good stability, and is inexpensive. The servo electric screwdriver system has the advantages of small torque fluctuation, constant speed, and strong torque overload capacity. This system does not require mechanical parts such as reducers and clutches, and there is no wear. Durability, reliability, and torque stability can be maintained for a long time. The system is small in size and easy to install. The visual Chinese screen can debug and monitor parameters such as torque and speed. The operation is simple and convenient, and it is easy to use.

(1) No mechanical gear and clutch structure, no wear, maintenance-free, long service life and low failure rate.

(2) High-precision current sampling and final value algorithm control, fast response, high repeatability and precise torque.

(3) The speed and torque parameters can be modified, and the locking function is intelligent.

(4) The controller is equipped with a 1.3-inch screen for modifying parameters, which is convenient for monitoring and debugging the operation of the electric batch.

(5) The controller has a 4-input and 4-output IO signal interface, which supports the start and stop of the electric screwdriver, the reversal of the electric screwdriver, the torque arrival and the alarm output signals of the electric screwdriver, and can easily perform coordinated actions with the robot arm.

(6) The controller has a built-in 485 interface that supports MODBUS RTU protocol and CAN communication interface. The RS232 communication interface communicates with the host computer in real time and also supports the host computer to modify parameters.
