Low Voltage DC Servo Drive

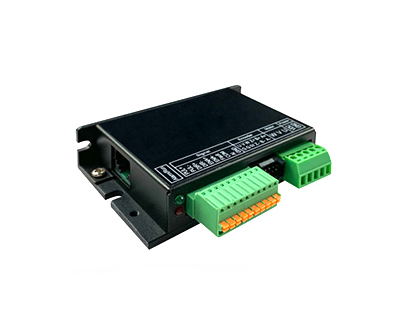

The low-voltage DC servo drive is developed with high-performance processors to provide users with a cost-effective servo control solution. Under the premise of ensuring stability and reliability, it pursues the functions and performance that are closest to the application. Compared with stepper products, it has low noise, low heat, high speed, constant torque output, and no step loss; compared with stepper servo products, it completely abandons the inherent disadvantages of stepper products, and has better functions, performance and reliability; compared with well-known foreign servos, it has similar performance, low price and easy to use. IDS306 has a small appearance and powerful functions. It is particularly suitable for applications with high-performance motion requirements and small installation space. It can be customized according to needs. It is a cost-effective servo drive solution.

※ Working voltage: 24VDC

※ Output current: Peak value 10A

※ Applicable motor: 5~100W low voltage DC servo motor, DC brushless motor with encoder or coreless motor

※ Control mode: external pulse (single-ended/differential), analog, CAN bus, RS232 communication control, IO control, etc., supporting position, speed and torque modes

※ Parameter adjustment: using RS232 communication, PC debugging software or handheld debugger debugging, can backup and import parameters

※ Abnormal protection: with alarm functions such as undervoltage, overvoltage, overload, overcurrent, excessive position deviation, encoder abnormality, etc.

※ Tracking error: ±1pulse

※ Speed control accuracy: ±1PRM

※ Upper limit of receiving pulse: 1MHZ

※ Minimum speed: 1RPM

※ Higher no-load acceleration: 200PRM/ms
