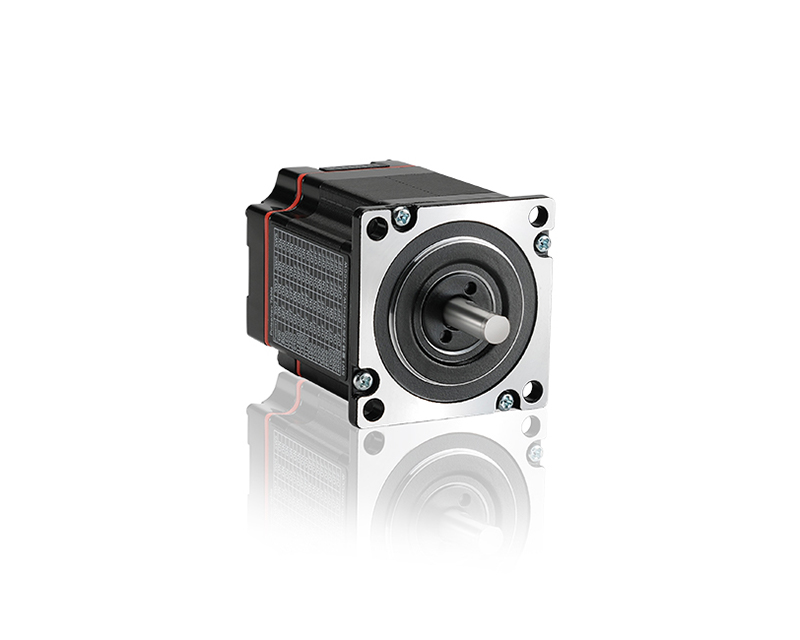

ESS257 Integrated Closed-Loop Stepper Motor

ESS257 Integrated Closed-Loop Stepper Motor

ESS57-P series integrated closed-loop stepper motor adopts the new generation of 32-bit DSP control technology and power angle control technology. The highest speed can reach more than 3000rpm, and the high-speed torque attenuation is much lower than that of ordinary open-loop drivers. It can greatly improve the high-speed performance and torque utilization rate of stepper motors, effectively reduce motor heating and vibration, thereby improving the processing efficiency and accuracy of the machine. The load-based current control technology can effectively reduce motor heating and extend the service life of the motor. The built-in in-place and alarm output signals of the driver are convenient for the host computer to monitor and control. The position out-of-tolerance alarm function ensures the safe operation of the processing equipment.

Features

New generation 32-bit DSP technology.

The higher pulse response frequency can reach 400KHZ

Small torque attenuation, speed up to 3000rpm

Built-in position and alarm output for easy monitoring and control

Intelligently adjust current to reduce vibration, noise and heat, and increase efficiency by 35%.

Voltage range: DC24~50V

With single and double pulse selection function, the factory default is: pulse + direction control

Excellent high speed and rigidity, perfectly integrating the advantages of both servo and stepper

With overvoltage, undervoltage, overcurrent and other protection functions

Integrated design of drive motor

Easy to install, small space and simple wiring

The integrated design of driver and motor simplifies the system structure and improves the system integration;

Supports multiple control modes, including pulse/direction and bus control;
stable high-speed operation; precise positioning and anti-step loss; fast response;
low noise; real-time adjustment of current to reduce heat generation.

Typical applications:
Printing, AOI, panel lamination, conveying equipment in PCB related equipment; camera, fingerprint and other module related equipment; die bonding machine, wire welding machine, glue dispenser, spectrometer, and packaging taping machine in packaging equipment; wire cutting and stripping machine, terminal machine tinning machine, wire labeling machine, etc.
