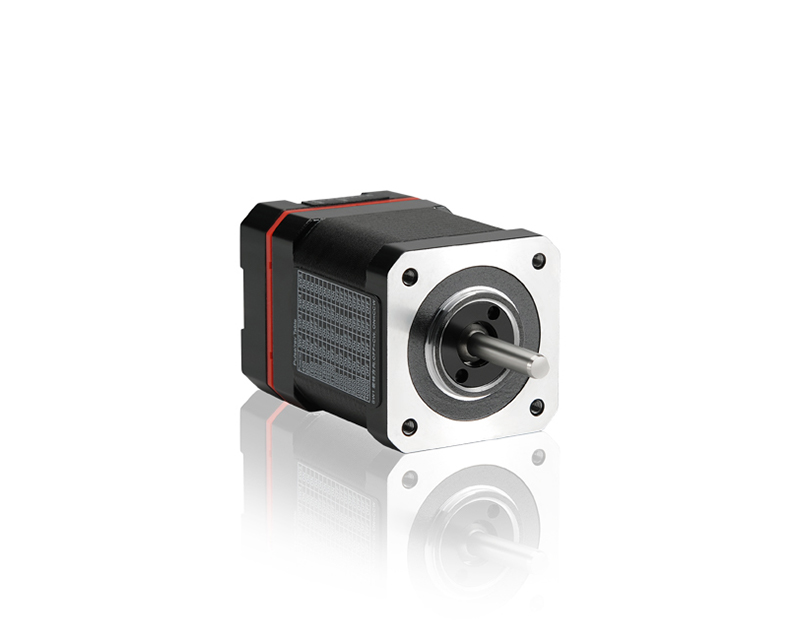

ESS242 Integrated Closed-Loop Stepper Motor

ESS242 Integrated Closed-Loop Stepper Motor

product description

ESS42-P series integrated closed-loop stepper motors adopt the new generation of 32-bit DSP control technology and power angle control technology. The highest speed can reach more than 3000rpm, and the high-speed torque attenuation is much lower than that of ordinary open-loop drivers. It can greatly improve the high-speed performance and torque utilization rate of stepper motors, effectively reduce motor heating and vibration, thereby improving the processing efficiency and accuracy of the machine. The load-based current control technology can effectively reduce motor heating and extend the service life of the motor. The built-in in-place and alarm output signals of the driver are convenient for the host computer to monitor

The position out-of-tolerance alarm function ensures the safe operation of the processing equipment.

The integrated design of driver and motor simplifies the system structure and improves the system integration;

Support multiple control modes, including pulse/direction and bus control;

High-speed and stable operation; precise positioning, anti-step loss; fast response speed;

Low noise; real-time adjustment of current to reduce heat generation.

Features

New generation 32-bit DSP technology.

The higher pulse response frequency can reach 400KHZ

Small torque attenuation, speed up to 3000rpm

Built-in position and alarm output for easy monitoring and control

Intelligently regulate current, reduce vibration, noise and heat, and increase efficiency by 35%.

Voltage range: DC24~36V

With single and double pulse selection function, the factory default is: pulse + direction control

Excellent high speed and rigidity, perfectly integrating the advantages of servo and stepper

With overvoltage, undervoltage, overcurrent and other protection functions

Integrated design of drive motor

Easy to install, small space and simple wiring

Typical applications:
Printing, AOI, panel lamination, conveying equipment in PCB related equipment; camera, fingerprint and other module related equipment; die bonding machine, wire welding machine, glue dispenser, spectrometer, and packaging taping machine in packaging equipment; wire cutting and stripping machine, terminal machine tinning machine, wire labeling machine, etc.
