42 series 1.8° two-phase open loop stepper motor

42 series 1.8° two-phase open loop stepper motor

The 42 series 1.8° two-phase two-phase hybrid stepper motor is a mechanical device that directly converts electrical pulses into angular positions. The speed depends on the number of pulses. It and the matching stepper motor drive device together form a set of simple control and low-cost open-loop system. When used with encoders and peripheral drive systems, it can also become a low-cost stepper servo system (closed-loop system).

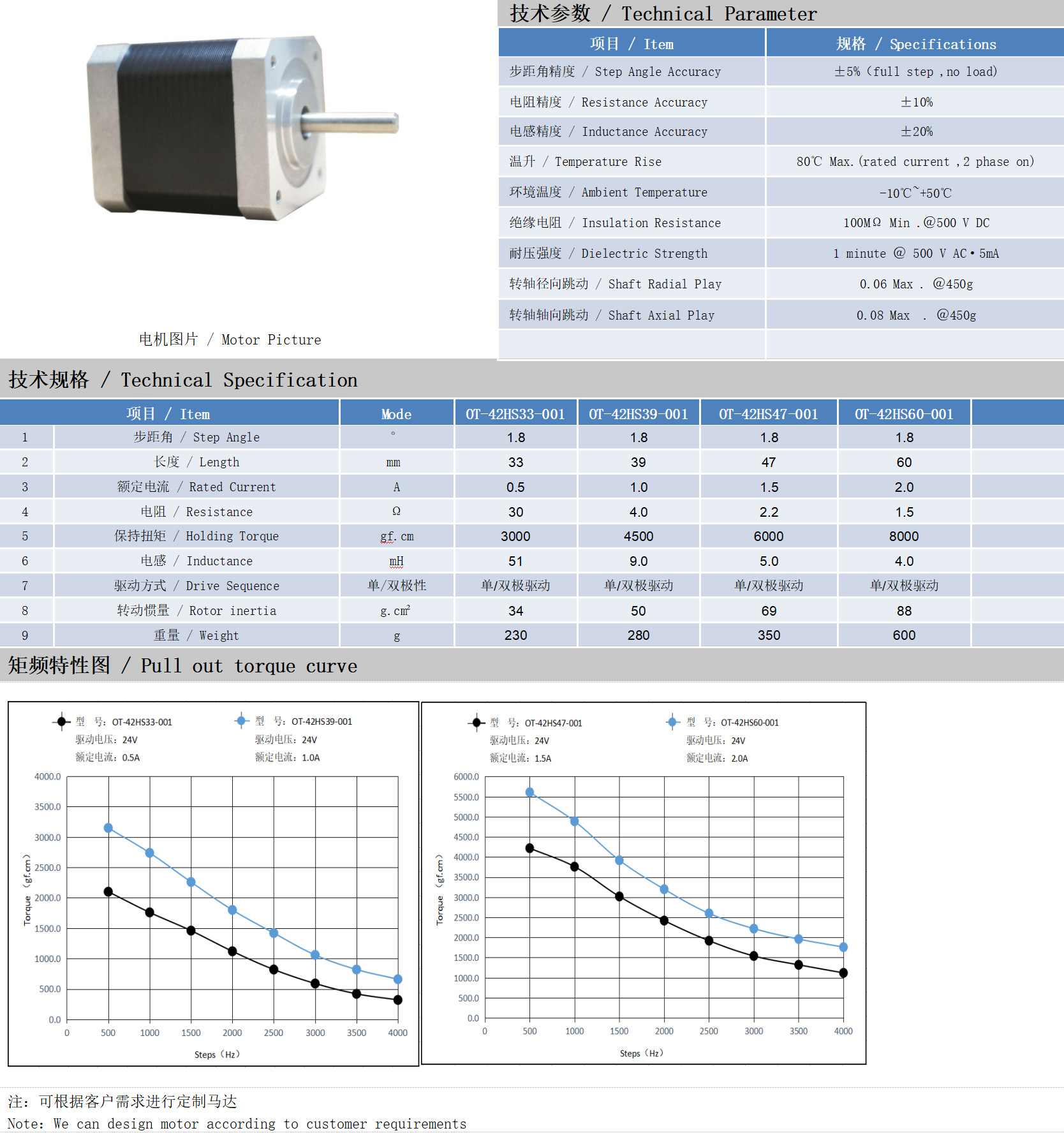

Rated voltage: 24V

Step angle: 1.8°

Inductance: 51mH

Holding torque: 3000gf.cm

Moment of inertia: 34g.c㎡

Application areas: medical, robotics, textiles, security equipment, 3D printing, etc.
