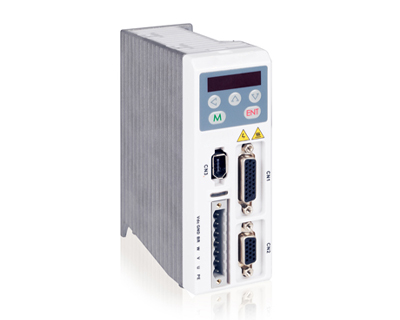

LD5-RS Series Stepper Driver

LD5-RS Series Stepper Driver

Support pulse, analog, IO trigger, 485 protocol and other control methods,

IO control provides 16 segments of settable trajectory values and 35 origin reset modes

The control mode supports position, speed, and torque, and can switch between modes

Supports multiple encoders and motors with multiple pole pairs

Speed response frequency up to 1.2KHz

LD5-RS is an intelligent integrated low-voltage AC servo system developed based on 20 years of motion control application experience and combined with the fifth-generation advanced servo technology. It has built-in motion control (PR) function, which is equivalent to a high-performance low-voltage AC servo system with built-in PLC. It adopts an isolated RS485 bus interface and supports the standard Modbus-RTU protocol. It can realize the reading and writing of process parameters and servo parameters, status monitoring, etc., and supports a communication network with a maximum of 32 axes. The driver is powered by a low-voltage DC power supply and can be used with multiple types of motors such as low-voltage AC servo, brushless servo, hollow cup, etc. It is your ideal choice for optimizing the electronic control system of the equipment and improving efficiency and reliability!

Application Areas

Suitable for single-axis manipulators, electric cylinders, 3C automation, logistics, gates and other automation equipment. It has the best effect when used in equipment where users expect high precision, high speed and high response.
