CL2C Series Closed-Loop Stepper Motors and Drivers

CL2C Series Closed-Loop Stepper Motors and Drivers

Built-in single-axis controller (PR)

Isolated RS485 bus

Rich input and output interfaces

Closed-loop control technology, no step loss during operation

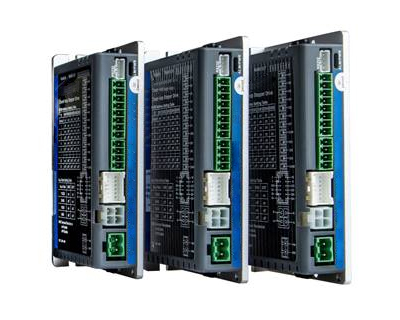

CL2C is an economical integrated closed-loop stepper driver independently developed by us. It is based on the standard Modbus RTU protocol and can support up to 31 -axis RS485 motion control networks. This product has a built-in single-axis controller and can be configured with a 16- segment position table program, which can greatly reduce the user's design cost. It adopts closed-loop control technology, does not lose steps during operation, has low heat generation, high speed, and low vibration and noise. At the same time, this product also has a variety of input and output interfaces, which can realize a variety of control functions such as position, speed, and return to origin.

Features

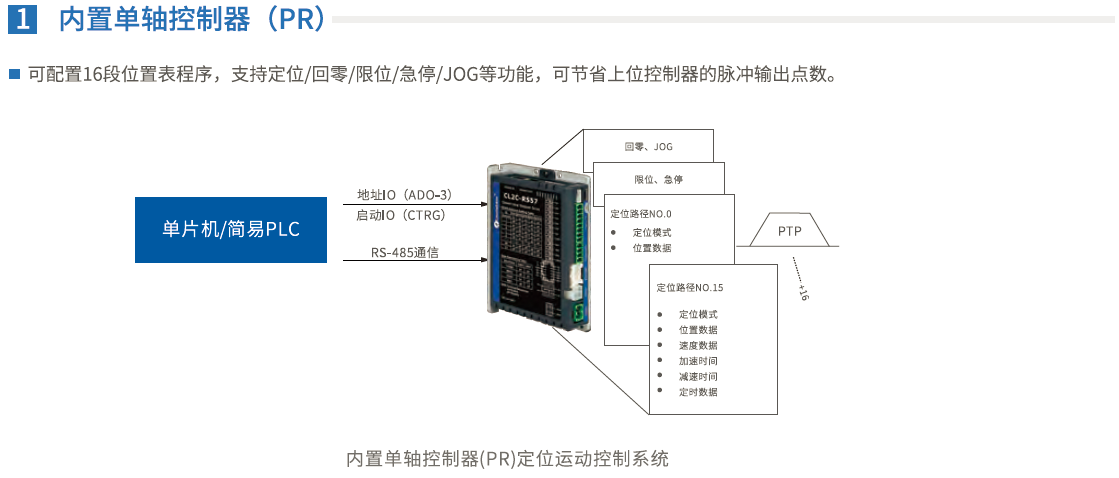

• Built-in single-axis controller, saving pulse output points of the upper controller

• Configurable 16-segment motion path, supports zero return/limit/emergency stop/positioning/JOG and other functions

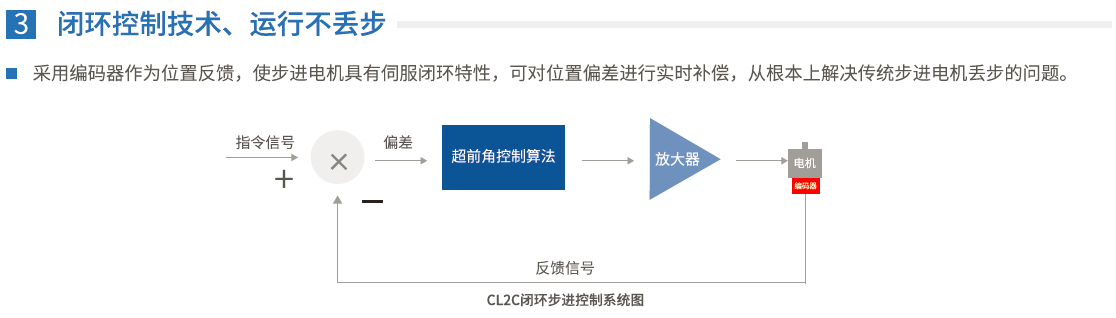

• Closed-loop control technology, no step loss during operation

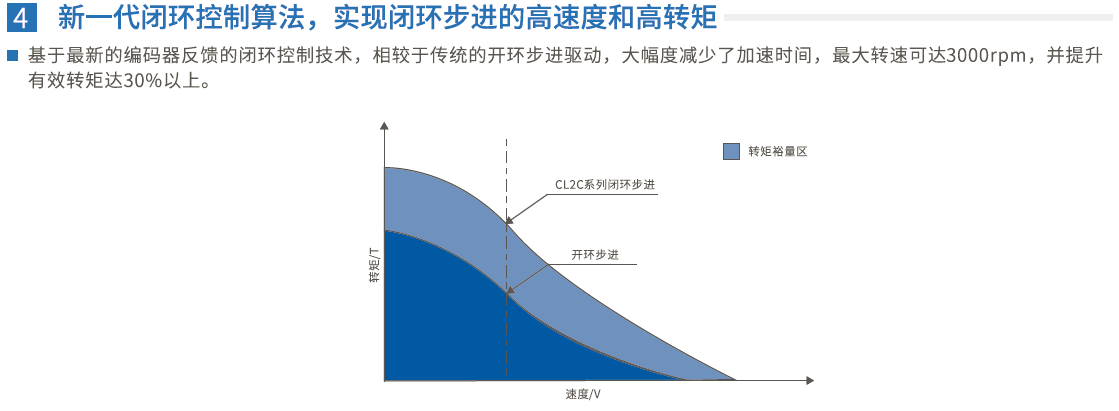

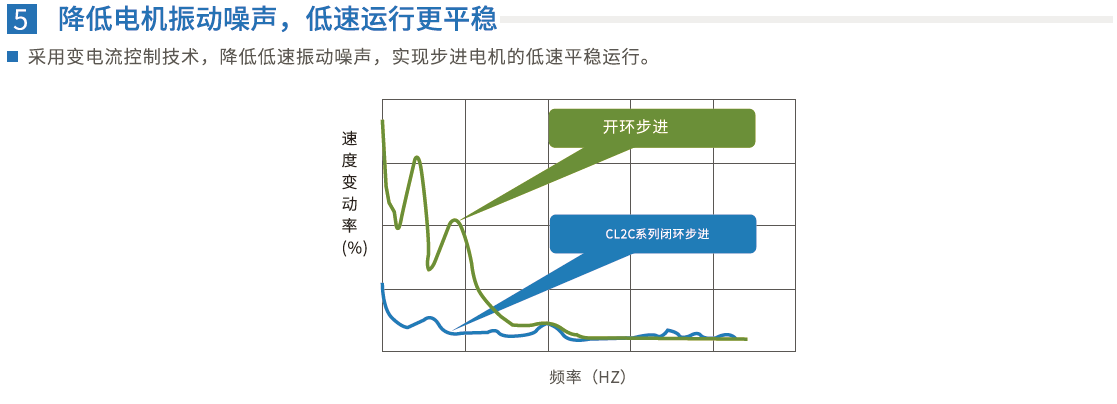

• Low heat generation, high speed, low vibration and noise, no debugging required

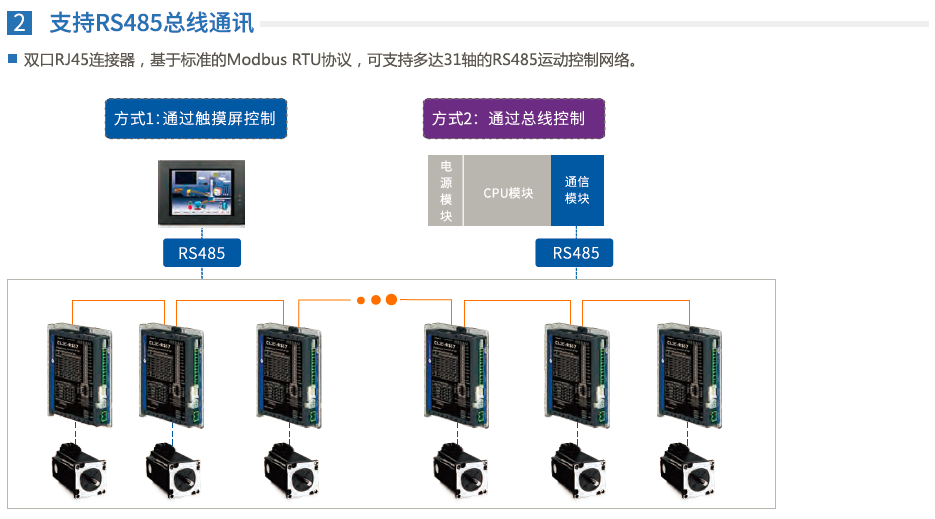

• Dual-port RJ45 connector, supports up to 31-axis RS-485 motion control network

• 7 digital inputs, can be connected to zero return, origin, limit switch and other input signals

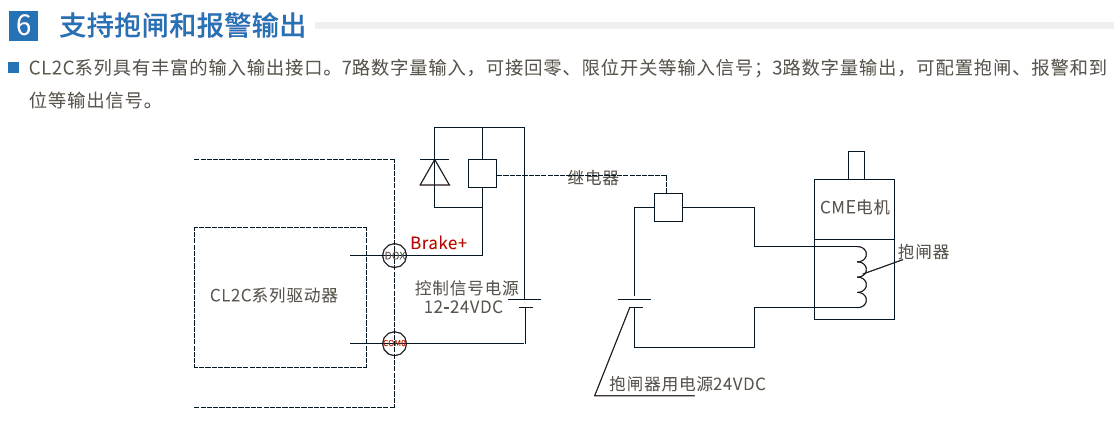

• 3-way digital output, configurable alarm, brake and in-position output signals
