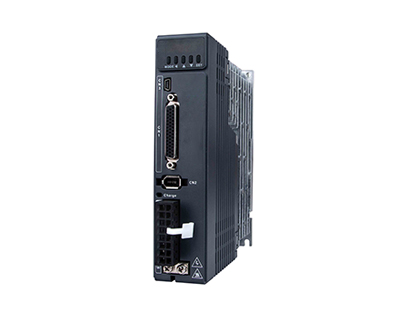

L7RS series AC servo system

L7RS series AC servo system

Drive and control integrated type

Position/speed/torque control, multi-stage motion

RS485 interface, standard Modbus communication

Built-in motion control function (PR)

17-bit/23-bit value encoder optional

Dynamic braking function as standard

New MS debugging software

Features

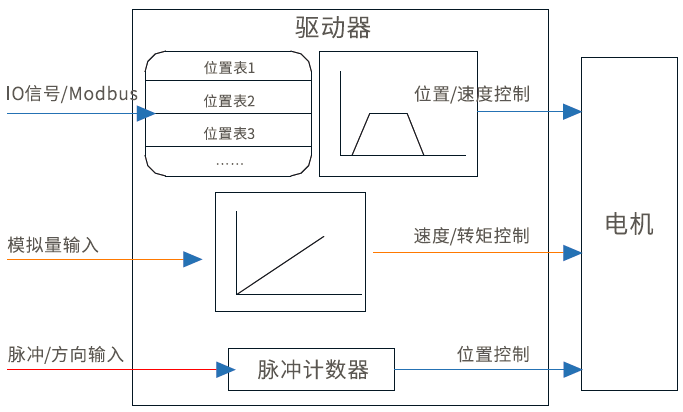

1. Integrate multiple control modes

The L7RS series servo integrates single-axis motion control suitable for IO signal/Modbus input, speed/torque control of analog input, position control of pulse input, etc.

Different control modes are suitable for different applications.

2. Integrated internal single-axis control function (PR)

The L7RS series drivers integrate single-axis control functions. The target position, speed, and motion trajectory are pre-set in the driver registers, and the motion parameters are adjusted in real time according to different application scenarios.

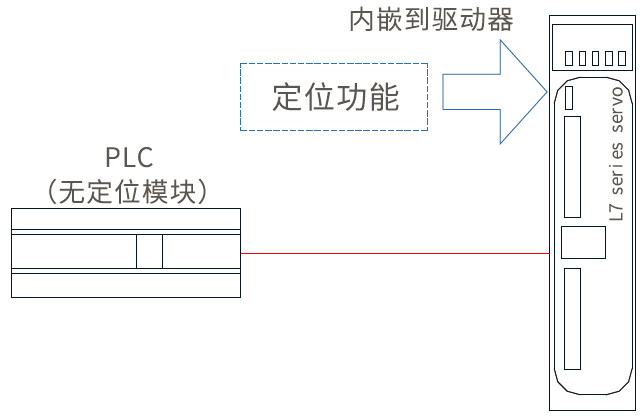

Simple point movement can be completed without PLC pulse points (no PLC positioning function).

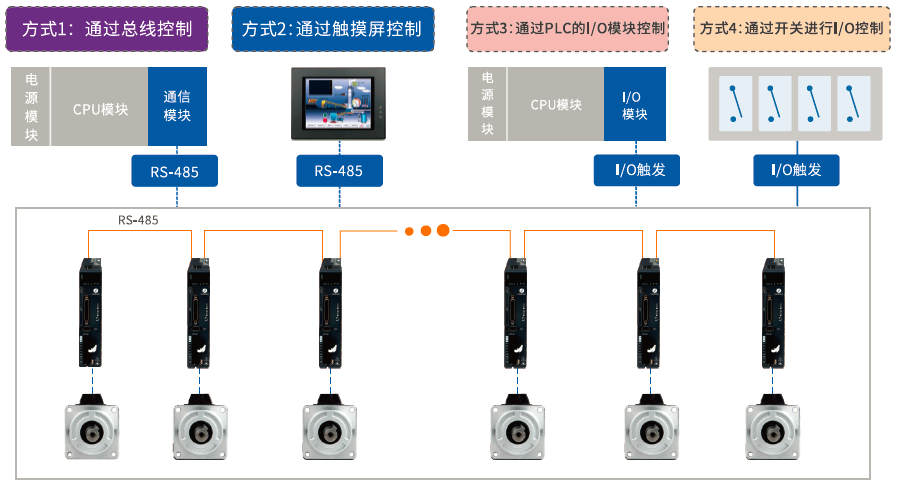

3. Support RS485 network communication control and IO point control

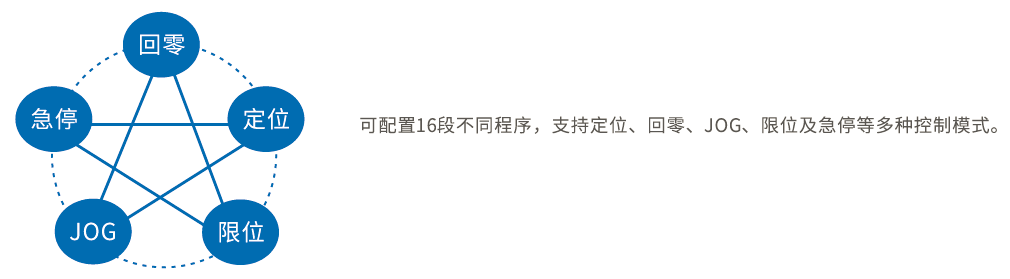

4. Rich PR functions
