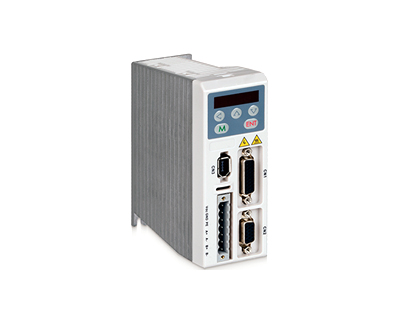

H2 Series H2-503

H2 Series H2-503

Adopting new 32-bit DSP chip for motor control;

Adopt advanced vector closed-loop control technology;

With oscilloscope monitoring and other functions;

Output current is automatically adjusted (within the range of 0-1.3A);

Can drive 20 and 28 series hybrid servo motors;

The pulse response frequency can reach up to 200KHZ;

Subdivision setting (within 200~51200);

With over-current, over-voltage and tracking error protection;

Six-digit digital tube display, convenient for setting parameters and monitoring motor operating status, etc.
