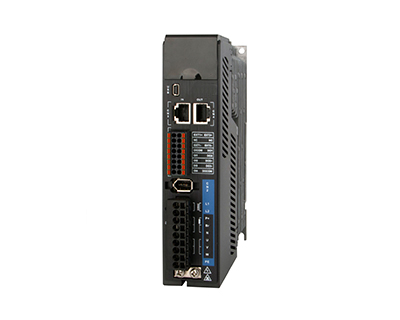

L7EC series AC servo system

L7EC series AC servo system

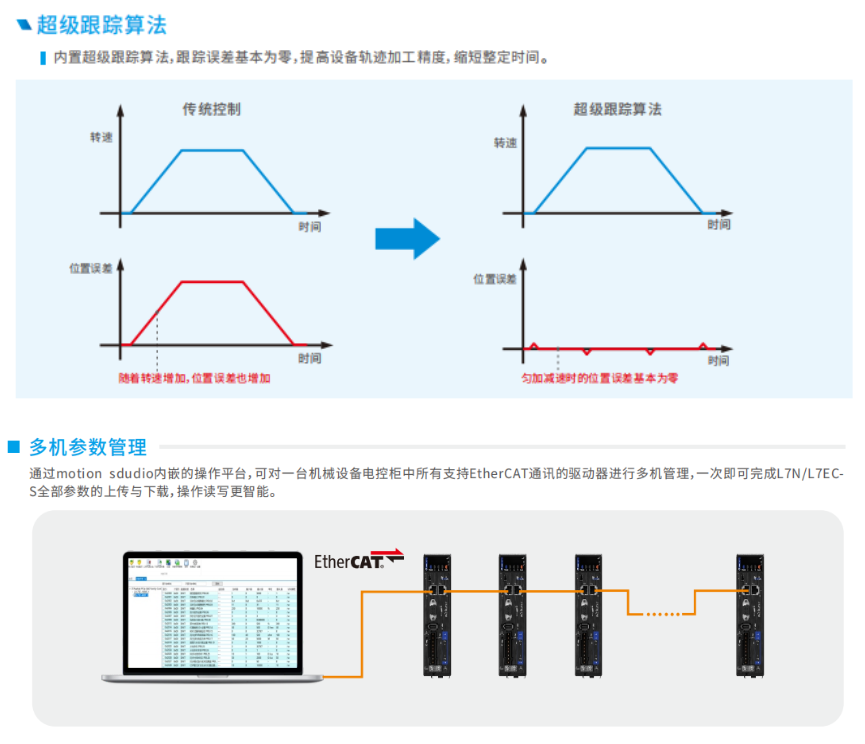

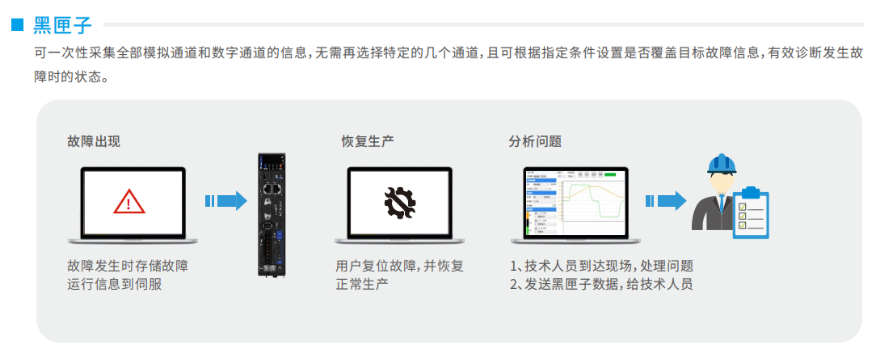

The L7EC series is an EtherCAT high-speed bus AC servo drive with a power range of 100W~7.5kW, a minimum bus synchronization period of 125μs, an STO function, and supports one-button tuning, super tracking, multi-machine management, black box and other functions, which greatly improves ease of use. L7EC is used with the ACM2 series high-response servo motor, and the operation is reliable and stable, and the system speed loop bandwidth can reach up to 3.2kHz.

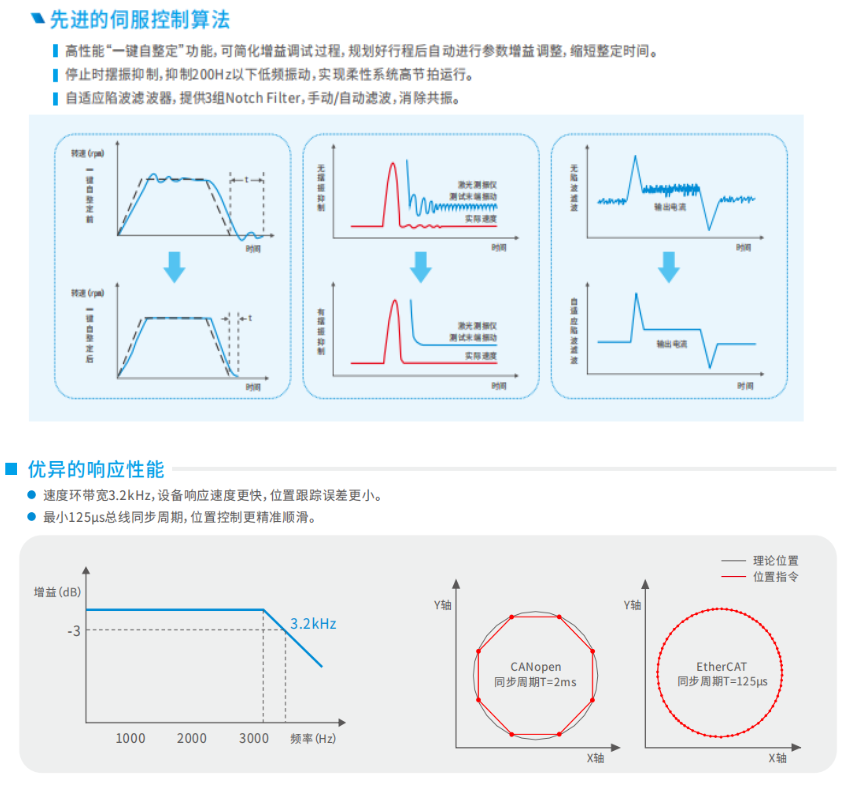

3.2kHz speed loop bandwidth

Equipped with STO (Safe Torque Off)

Spring terminal block, IO solder-free

Supports importing, exporting and modifying parameters only under USB power supply

Customizable pressure control machine

Standard 23-bit multi-turn encoder

6500rpm higher speed

Power range: 50W~7.5kW
