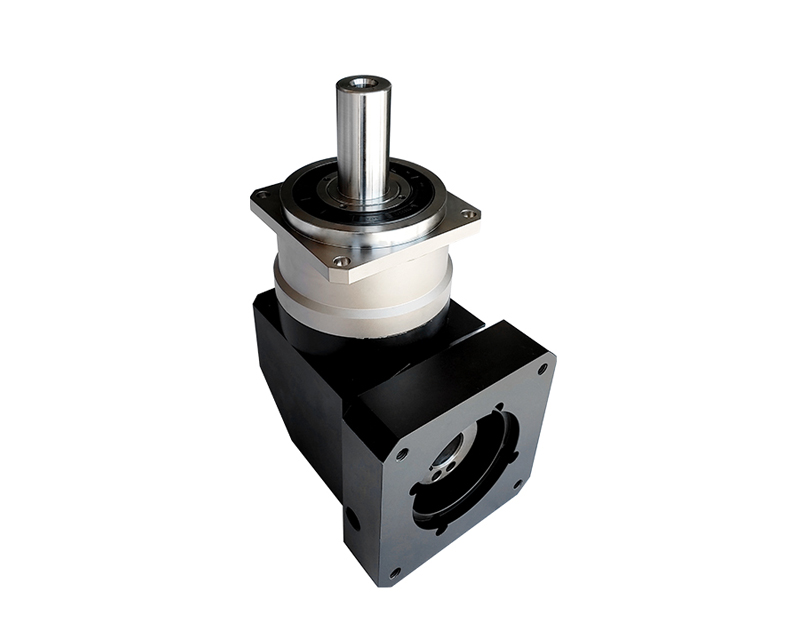

TAR helical planetary reducer

TAR helical planetary reducer

Driving the world with planetary transmission and leading the future with precision manufacturing

Features:

1. Spiral bevel gear reversing mechanism to achieve right-angle steering output.

2. The installation distance of the spiral bevel gear pair is adjustable, and the working noise is lower.

3. Grinding bevel gear pair is available, which makes the working sound more stable and quiet.

4. Integrated design, high precision and high rigidity.

5. Double-support cage planetary carrier structure with high reliability, suitable for high-speed frequent forward and reverse rotation.

6. Compared with the corresponding square body series, it has the same performance and higher cost performance.

7. Coupling meter, more connection options, keyway can be opened.

8. Helical gear transmission, low return clearance and more accurate positioning.

Specification range:

60-180

Speed ratio range: 3-100

Accuracy range: 3-5 arc minutes (P1 level)

5-8 arc minutes (P2 level)

industry sector
