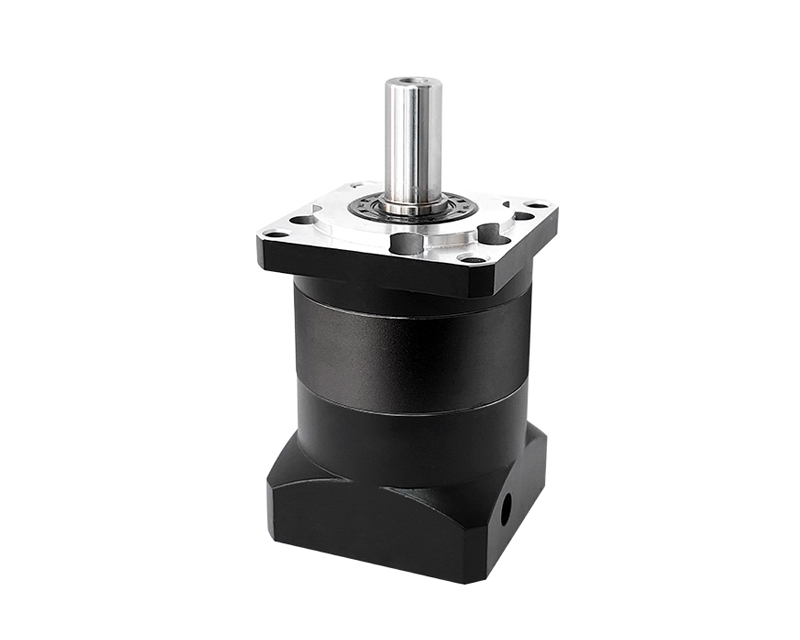

TW helical planetary reducer

TW helical planetary reducer

Driving the world with planetary transmission and leading the future with precision manufacturing

Features:

1. Split design, more output options.

2. Input and output sizes can be seamlessly switched with the spur gear series.

3. Double-support cage planetary carrier, high reliability, suitable for high-speed frequent forward and reverse rotation.

4. Double-stage single support bracket design, high cost performance.

5. The input shaft can be keyed.

6. Helical gear transmission, more stable transmission and large load-bearing capacity.

7. Low return clearance and precise positioning.

Specification range:

60-120

Speed ratio range: 3-100

Accuracy range: 1-3 arc minutes (P1 level)

3-5 arc minutes (P2 level)

Product advantages

industry sector
