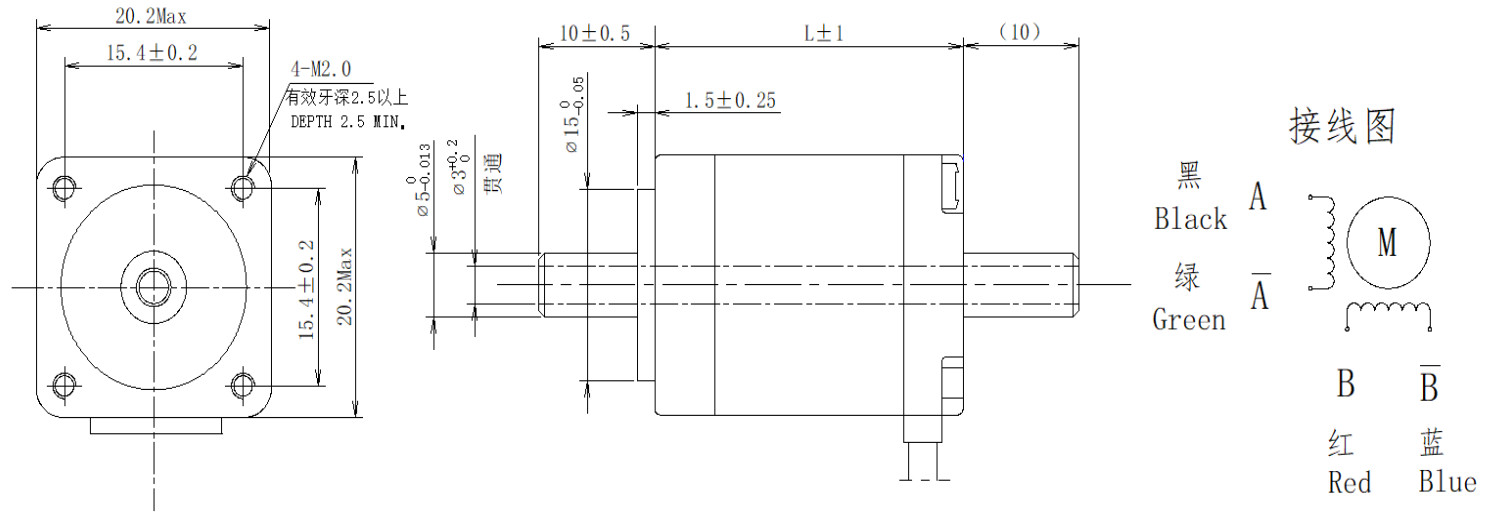

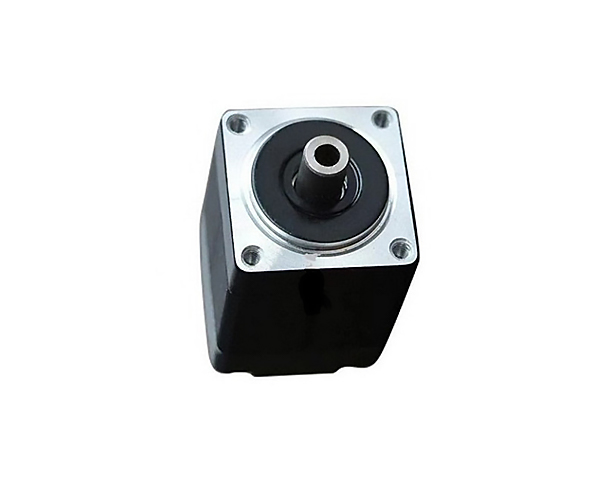

20 Series Hollow Shaft Motors
The 20 series hollow shaft stepper motor is a mechanical device that directly converts electrical pulses into angular positions. The speed depends on the number of pulses. It and the matching stepper motor drive device together form a set of simple and low-cost open-loop system. When used with encoders and peripheral drive systems, it can become a low-cost stepper servo system (closed-loop system).

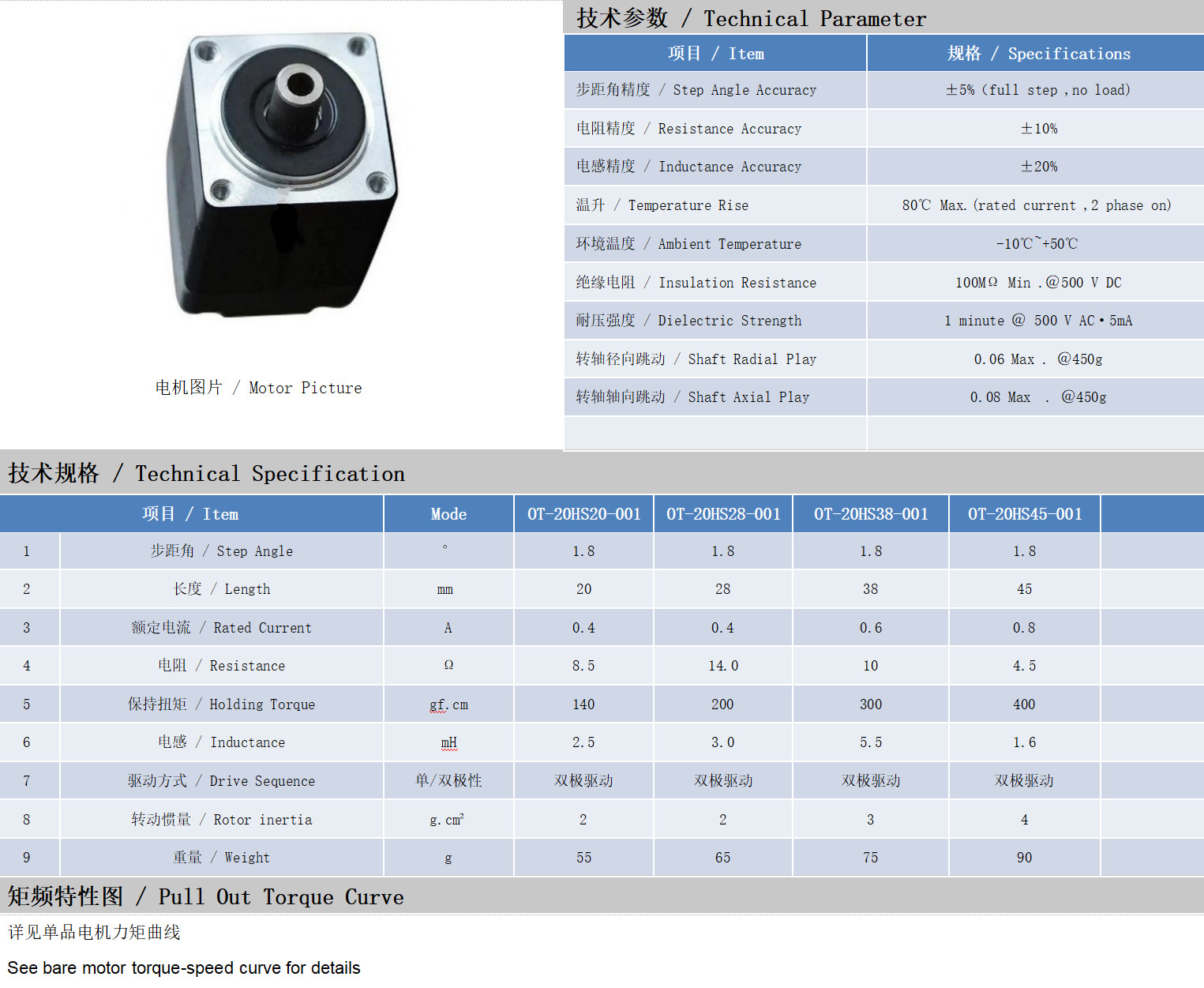

Rated current: 0.4A
Step angle: 1.8°
Inductance: 2.5mH
Holding torque: 140gf.cm
Application areas: medical, robotics, textiles, security equipment, 3D printing, etc.
