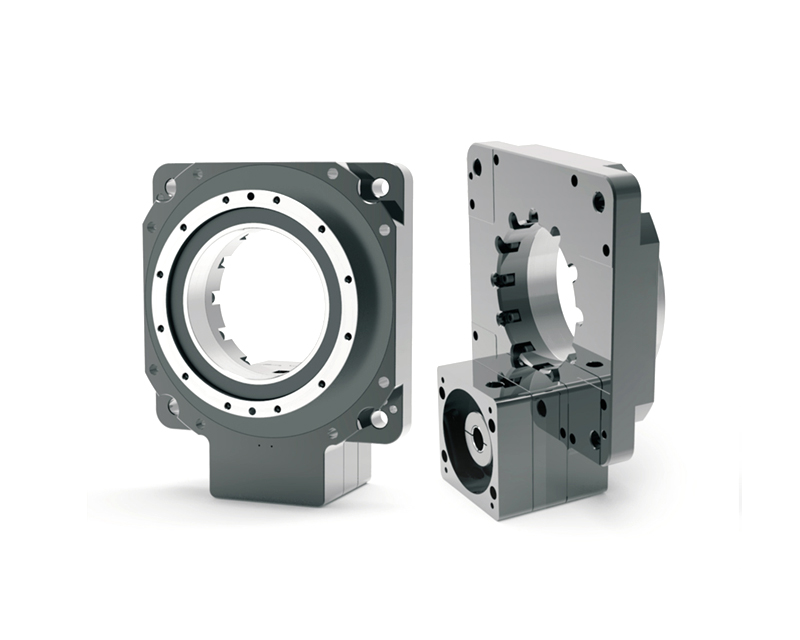

Rotating platform CTN280 series

Rotating platform CTN280 series

Features:

1. The workpiece can be directly locked. The rotating disk can directly lock the workpiece, which improves the convenience of workpiece loading.

2. Convenient wiring. The rotating platform is hollow in design, which is convenient for wiring and piping.

3. High precision, positioning accuracy is less than 1 arcmin, and repeatability can reach ±5 arcsec.

4. The operation is stable, the disk rotates steadily and smoothly, and the positioning is fast.

Specifications:

280

Speed ratio range: 10, 18

Motor range: 110 type (stepping motor)

1500W AC (Servo motor)

Input installation dimension code: 22110M8145LR80 (transmission ratio: 10/18)

24110M8145LR80 (gear ratio: 10/18)

1985M8132LR80 (gear ratio: 10/18)
