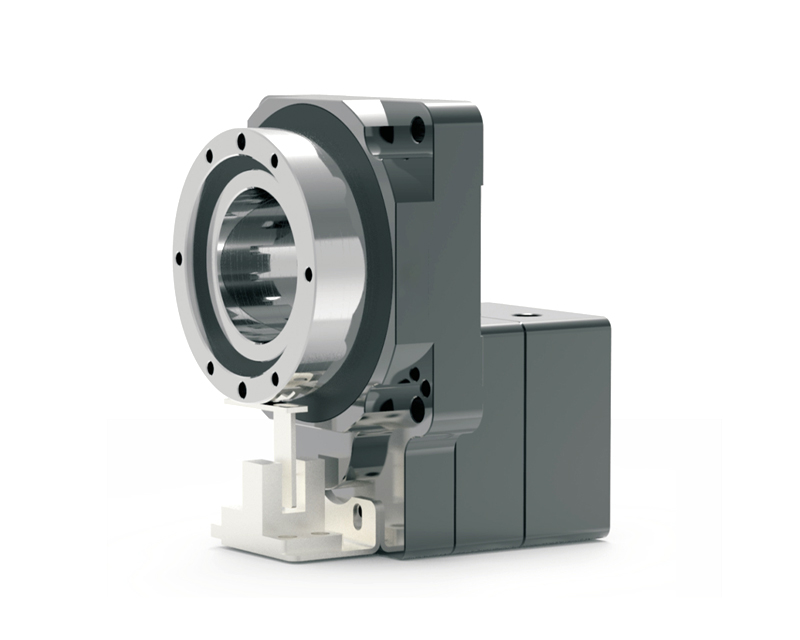

Hollow Rotary Platform CTN60 Series

Hollow Rotary Platform CTN60 Series

Features:

1. The workpiece can be directly locked. The rotating disk can directly lock the workpiece, which improves the convenience of workpiece loading.

2. Convenient wiring. The rotating platform is hollow in design, which is convenient for wiring and piping.

3. High precision, positioning accuracy is less than 1 arcmin, and repeatability can reach ±5 arcsec.

4. The operation is stable, the disk rotates steadily and smoothly, and the positioning is fast.

Specifications:

60

Speed ratio range: 5, 10

Motor range: 42 type (stepper motor)

50/100W AC (Servo motor)

Input installation dimension code: 830M345LR30 (transmission ratio: 5/10)

830M446LR30 (gear ratio: 5/10)

5223.543.8LR30 (gear ratio: 5/10)
