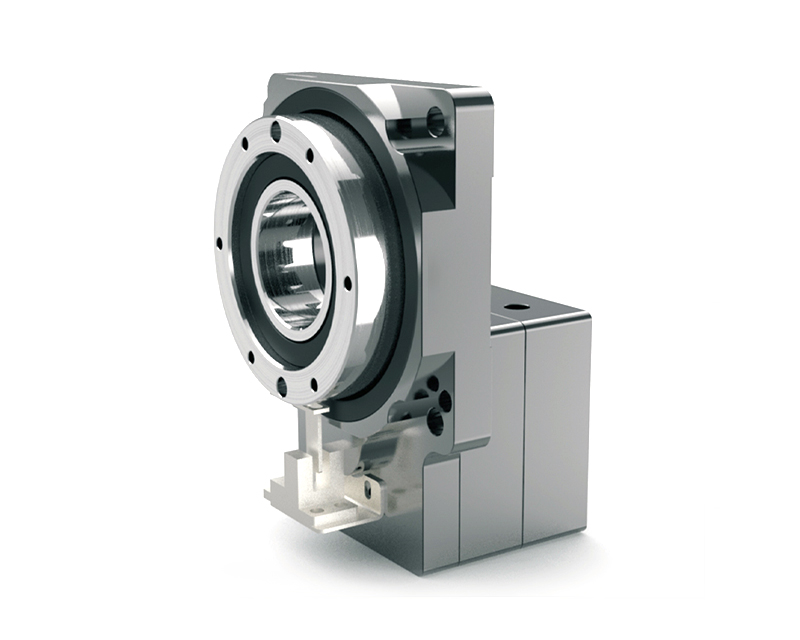

Hollow turntable manufacturer CTN85 series

Hollow turntable manufacturer CTN85 series

Features:

1. The workpiece can be directly locked. The rotating disk can directly lock the workpiece, which improves the convenience of workpiece loading.

2. Convenient wiring. The rotating platform is hollow in design, which is convenient for wiring and piping.

3. High precision, positioning accuracy is less than 1 arcmin, and repeatability can reach ±5 arcsec.

4. The operation is stable, the disk rotates steadily and smoothly, and the positioning is fast.

Product specifications: 85

Speed ratio range: 5, 10, 18

Motor range: 42 type/57 type (stepping motor)

50/100/200/400W AC (Servo motor)

Input installation size code: 1450M470LR34.5 (transmission ratio: 5/10)

1450M570LR34.5 (gear ratio: 5/10)

838.1M466.7-LR34.5 (gear ratio: 5/10)

830M345LR30 (gear ratio: 18)

830M446LR30 (gear ratio: 18)

5223.543.83LR34.5 (gear ratio: 18)

838.1M466.7LR34.5 (gear ratio: 18)
