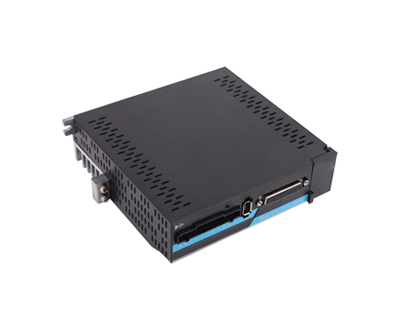

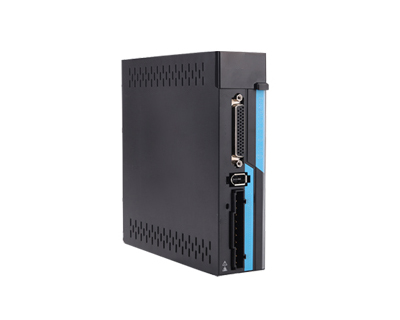

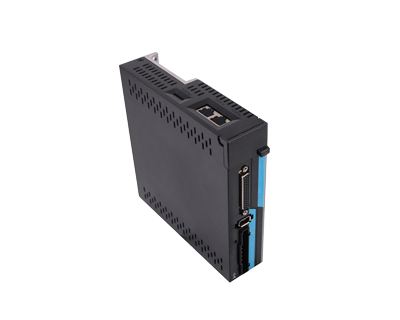

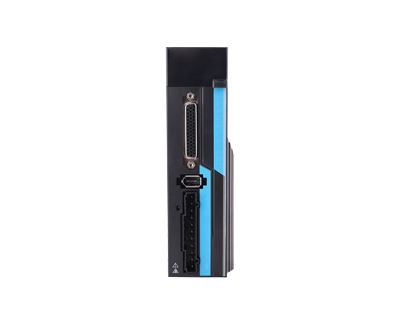

P100E-40 AC Servo Drive

P100E-40 AC Servo Drive

The P100E-40 AC servo drive is a bus-type servo drive that adds bus communication function to the P series high-performance AC servo drive. It adopts the EtherCAT bus communication interface and is based on the EtherCAT slave technology. The transmission rate of 100Mb/s realizes the real-time control and real-time data transmission of the servo system. The drive has a rich input and output interface and supports CSP, CSV, CST, PP, PV, PT, and HM operation modes. Compared with traditional pulse servo drives, this drive is particularly suitable for applications in long-distance and multi-axis linkage situations, which can greatly reduce wiring and enhance the reliability of drive operation.

Features:

1. The working voltage is AC input voltage of AC220V±10%, single phase/three phase, 50/60Hz;

2. Support EtherCAT communication protocol, the address is automatically assigned by the master station;

3.8-way single-ended common anode isolated input function, input frequency up to 10KHz, input voltage 24V;

4.6-channel optocoupler isolated output, with a maximum output capacity of 50mA and a maximum withstand voltage of 30Vdc.

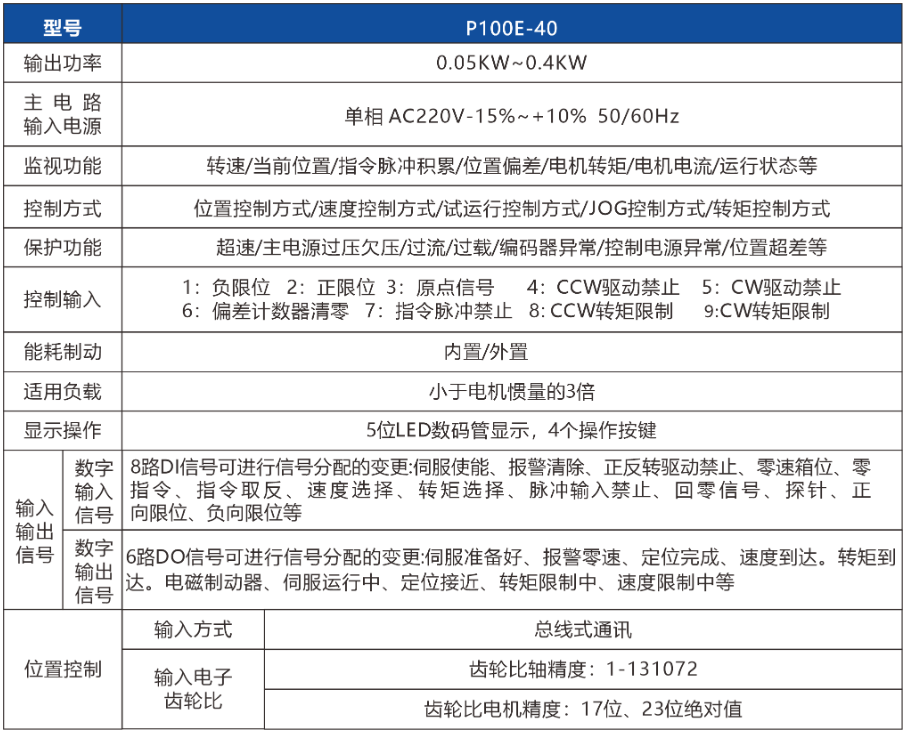

Specifications:
