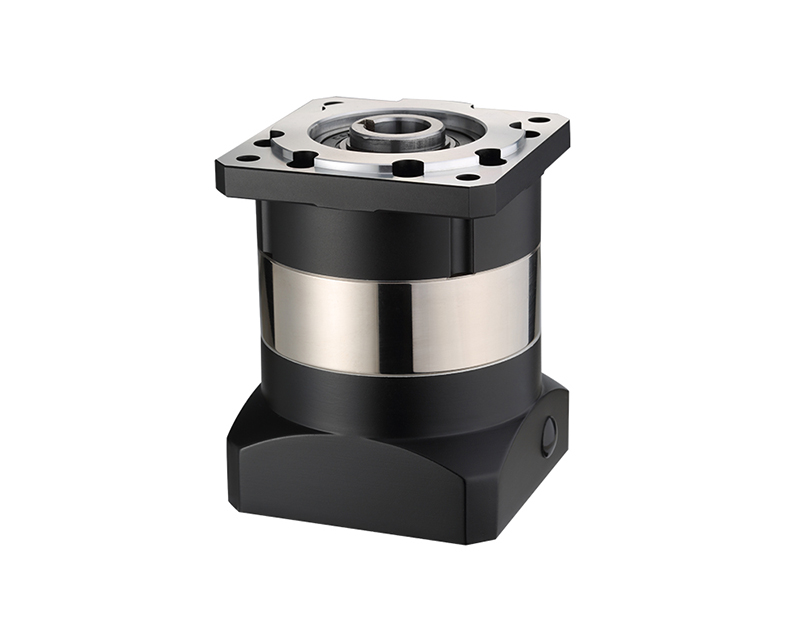

TFN Series (Size 60-120)

TFN Series (Size 60-120)

Driving the world with planetary transmission and leading the future with precision manufacturing

Features:

1. Hole output structure, easy to install

2. Method flange output, standardized size.

3. The input connection specifications are complete and there are many choices.

4. Straight tooth transmission, single cantilever structure, simple design, very cost-effective.

5. The input shaft can be keyed.

Specification range: 60-120

Speed ratio range: 3-100

Accuracy range: 8-16 arc minutes

Product advantages:

1. The planetary arm and output shaft adopt an integrated structural design to ensure greater torsional rigidity.

2. The planetary gear adopts full needle roller design to increase the contact area to improve the structural rigidity and output torque.

3. The gears are made of low carbon steel and surface carburized and quenched to HRC62 to obtain better wear resistance and impact toughness.

4. The tooth shape uses imported software to assist in design to obtain a better tooth shape and reduce noise.

5. The input end is connected to the motor shaft using a double-sided clamping method to obtain greater clamping force and zero backlash power transmission.
