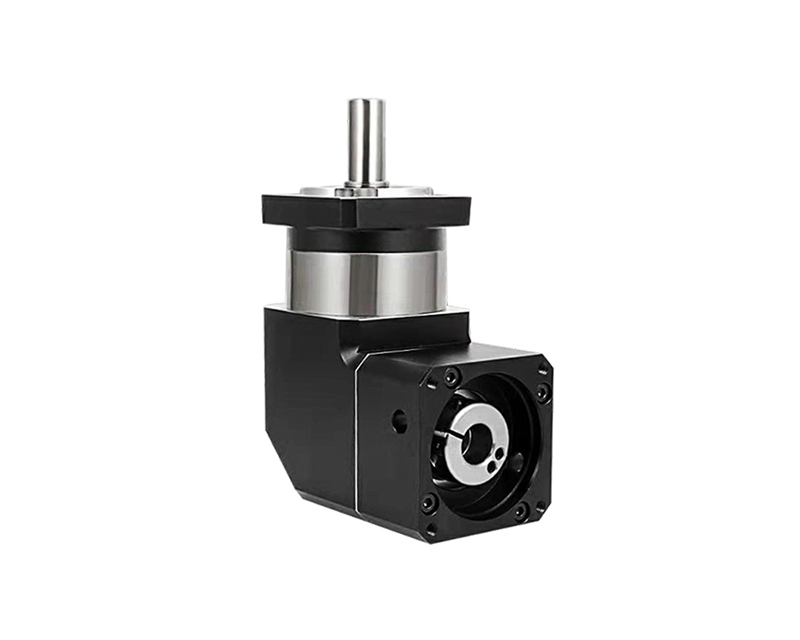

TVFN Series (Size 60-120)

TVFN Series (Size 60-120)

Driving the world with planetary transmission and leading the future with precision manufacturing

Features:

1. With bevel gear reversing mechanism, it can realize right angle output.

2. Simple design, reliable performance, and extremely cost-effective.

3. The conical gear pair is carburized, with a hardness of HRC58 and excellent wear resistance.

Specification range: 60-120

Speed ratio range: 3-100

Accuracy range: 8-16 arc minutes

Product advantages:

1. The planetary arm and output shaft adopt an integrated structural design to ensure greater torsional rigidity.

2. The planetary gear adopts full needle roller design to increase the contact area to improve the structural rigidity and output torque.

3. The gears are made of low carbon steel and surface carburized and quenched to HRC62 to obtain better wear resistance and impact toughness.

4. The tooth shape uses imported software to assist in design to obtain a better tooth shape and reduce noise.

5. The input end is connected to the motor shaft using a double-sided clamping method to obtain greater clamping force and zero backlash power transmission.

6. The spiral bevel gear design allows high output torque, which is more than 30% higher than the straight bevel gear.

7. High allowable input speed, more than 8 times higher than the straight bevel gear input.

8. The meshing tooth print of the spiral bevel gear has been better optimized, the contact tooth surface load is uniform, and the operating life is long.

9. The meshing of spiral bevel gears is carried out through better motion error analysis and strict process control to ensure high-precision operating backlash.
