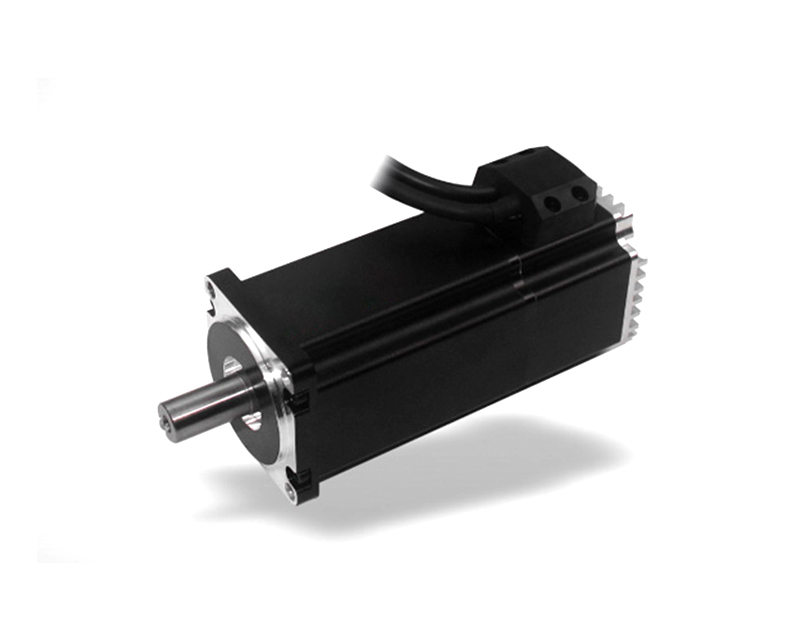

Product name: Standard integrated servo

The standard integrated servo has the servo driver built into the low-voltage DC servo motor, and has solved the problems of electromagnetic interference and heating. It can save installation space and eliminate cumbersome wiring. It only needs power supply and control signal connection to work, making installation and maintenance extremely simple. The servo power range is 100~400W, compatible with the installation size of Japanese Panasonic motors, the encoder line number is 1250 and 2500 optional, the low-speed performance is close to the Japanese servo, 1RPM can still run smoothly, and the rated speed is 3000RPM. The servo is powered by low-voltage DC 24~48V, which can adapt well to the uneven domestic power environment, avoid the impact of large voltage fluctuations or drops on the servo drive circuit, which is conducive to improving the life of the equipment, closer to the international low-voltage use standards, and higher safety. The servo technology is mature, simple to install, stable and reliable, cost-effective, and is particularly suitable for occasions with small installation space and distributed motor control.

※ Working voltage: 24~48VDC

※ Power range: 100~400W low voltage DC servo motor

※ Rated speed: 3000RPM

※ Control mode: external pulse (single-ended/differential), analog, CAN bus, RS232 communication control, IO control, etc., supporting position speed and torque mode

※ Parameter adjustment: using RS232 communication, PC debugging software or handheld debugger debugging, can backup and import parameters

※ Abnormal protection: with alarm functions such as undervoltage, overvoltage, overload, overcurrent, excessive position deviation, encoder abnormality, etc.

※ Built-in acceleration and deceleration, smooth start and stop

※ Supports non-origin torque reset, and can customize packaging control functions

※ Tracking error: ±1Pulse

※ Speed control accuracy: ±1RPM

※ Upper limit of receiving pulse: 1MHZ

※ Minimum speed: 1RPM

※ Higher no-load acceleration: 200RPM/ms

※ Positioning accuracy: 1/5000 (1250), 1/10000 (2500)
