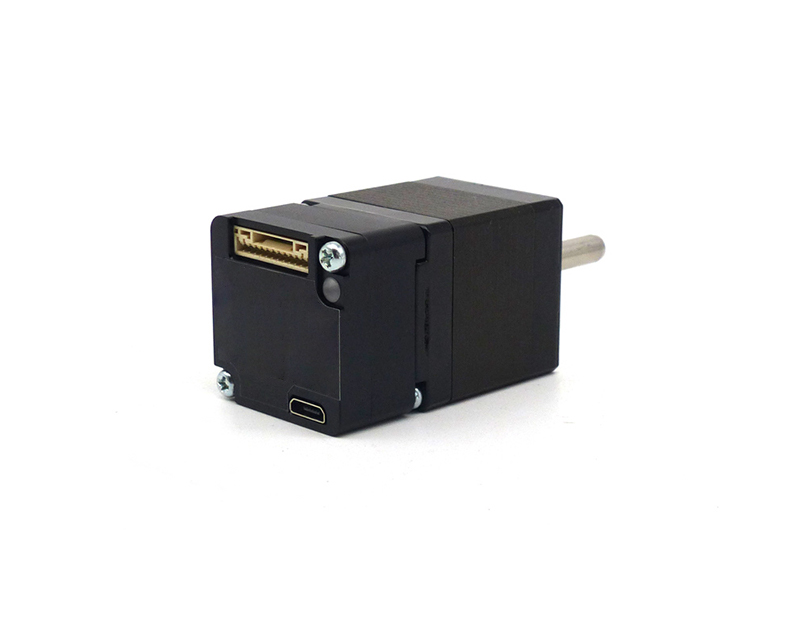

28 integrated step servo motor (closed loop)

28 integrated step servo motor (closed loop)

Working voltage range: 22~40V

Drive output current: 0.2~2.0A

Output torque range: 0.07~0.2Nm

Communication method: TTL

Encoder: 1000-line encoder feedback

Control mode: pulse direction control, host computer control

Small size: motor and drive integrated

Low heat generation: Use high current MOS to generate less heat

Fast heat dissipation: Adopt special thermal pads to dissipate heat faster

Simple wiring: only power line + signal line is needed, eliminating motor line and encoder line

Not easy to damage: The power/signal input has anti-reverse connection function, and the motor line is not open to the outside, so the user is less likely to connect the wrong line

Application areas:

Medical devices, assembly equipment and other fields
