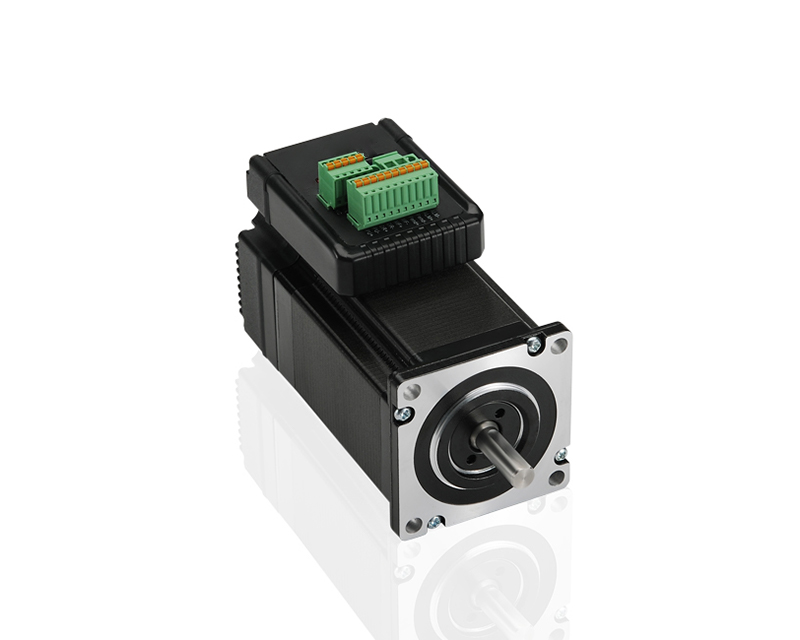

YSS60-C Integrated Closed-Loop Stepper Motor

YSS60-C Integrated Closed-Loop Stepper Motor

YSS60-C series integrated motors adopt the new generation of 32-bit DSP control technology and power angle control technology. The maximum speed can reach over 3000rpm, and the high-speed torque attenuation is much lower than that of ordinary open-loop drivers. It can greatly improve the high-speed performance and torque utilization rate of stepper motors, effectively reduce motor heating and vibration, thereby improving the processing efficiency and precision of the machine.

YSS60-C series supports standard CANopen protocol and complies with CiA402 standard. Driver parameters such as subdivision, pulse, acceleration and deceleration time can be set through the bus, which is stable and reliable and effectively reduces costs.

Features

Adopting new 32-bit motor control dedicated DSP chip

Support standard CANopen protocol, compliant with CiA402 standard

Voltage range: DC 24V~50V

Small torque attenuation, speed up to 3000rpm

Built-in position and alarm outputs for easy monitoring and control

Intelligently adjust current to reduce vibration, noise and heat, and increase efficiency by 35%

With multiple input and output interfaces, and single-axis control function

Excellent high speed and rigidity, perfectly integrating the advantages of servo and stepper

typical application:

Mainly used in wire stripping machines, marking machines, cutting machines, plotters, medical equipment and automation equipment and instruments.
