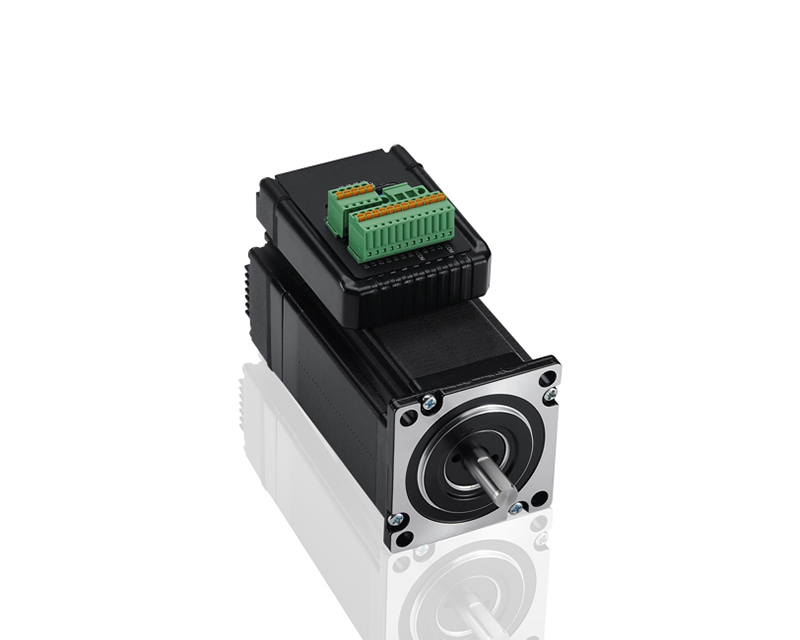

YSS57-P Integrated Closed-Loop Stepper Motor

YSS57-P Integrated Closed-Loop Stepper Motor

The YSS57-P series integrated motor adopts the new generation of 32-bit DSP control technology and power angle control technology. The highest speed can reach more than 3000rmp, and the high-speed torque attenuation is much lower than that of ordinary open-loop drivers. It can greatly improve the high-speed performance and torque utilization rate of stepper motors, effectively reduce motor heating and vibration, and thus improve the processing efficiency and accuracy of the machine.
The use of load-based current control technology can effectively reduce motor heating and extend the service life of the motor. The built-in in-place and alarm output signals of the driver facilitate detection and control by the host computer. The position out-of-tolerance alarm function ensures the safe operation of the processing equipment.

Adopting new 32-bit motor control dedicated DSP chip

Voltage range: DC24V~50V, 16 levels in total

The higher pulse response frequency can reach 400KHZ

Small torque attenuation, speed up to 3000rpm

Built-in position and alarm outputs for easy monitoring and control

Intelligently adjust current to reduce vibration, noise and heat, and increase efficiency by 35%

With single and double pulse selection function, the factory default is: pulse + direction control

Excellent high speed and rigidity, perfectly integrating the advantages of servo and stepper

Typical applications:
Mainly used in wire stripping machines, marking machines, cutting machines, plotters, medical equipment and automation equipment and instruments.
