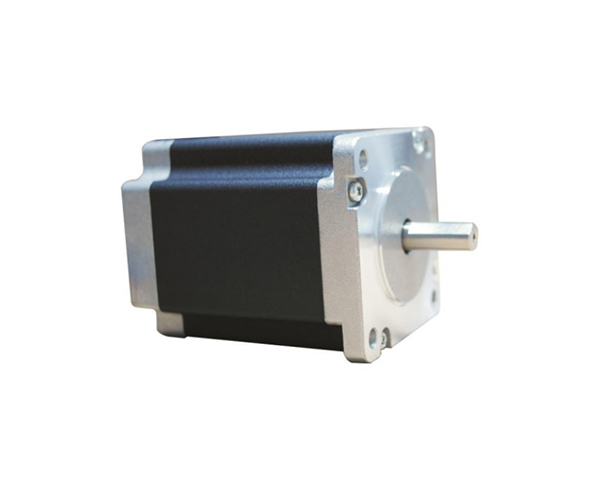

57 series 1.8° two-phase open loop stepper motor

57 series 1.8° two-phase open loop stepper motor

The 57 series 1.8° two-phase two-phase hybrid stepper motor is a mechanical device that directly converts electrical pulses into angular positions. The speed depends on the number of pulses. It and the matching stepper motor drive device together form a set of simple control and low-cost open-loop system. When used with encoders and peripheral drive systems, it can become a low-cost stepper servo system (closed-loop system).

Rated voltage: 36V

Step angle: 1.8°

Inductance: 16mH

Holding torque: 8000gf.cm

Application areas: medical, robotics, textiles, security equipment, 3D printing, etc.
