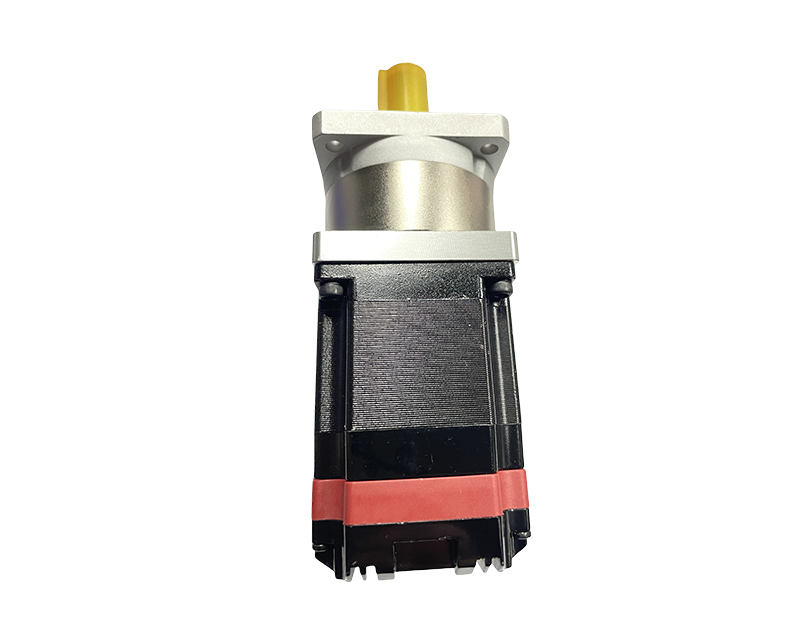

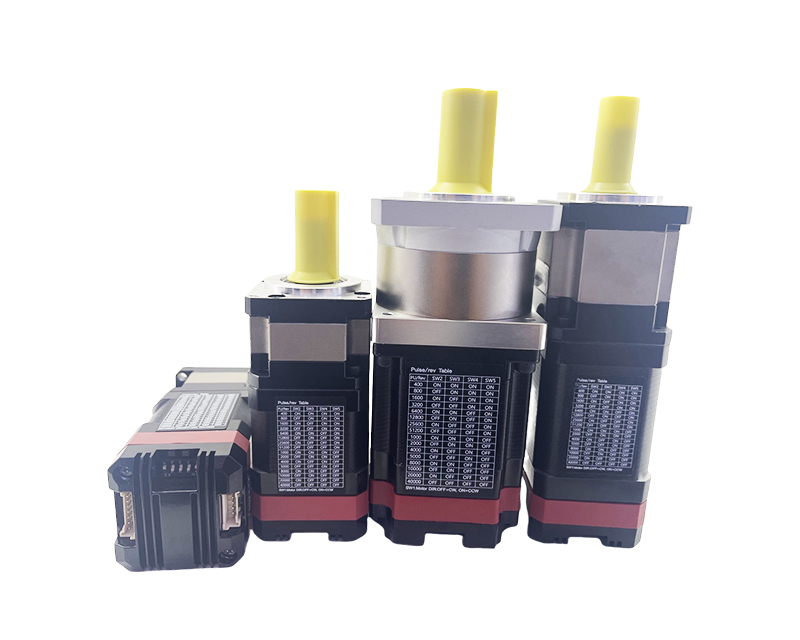

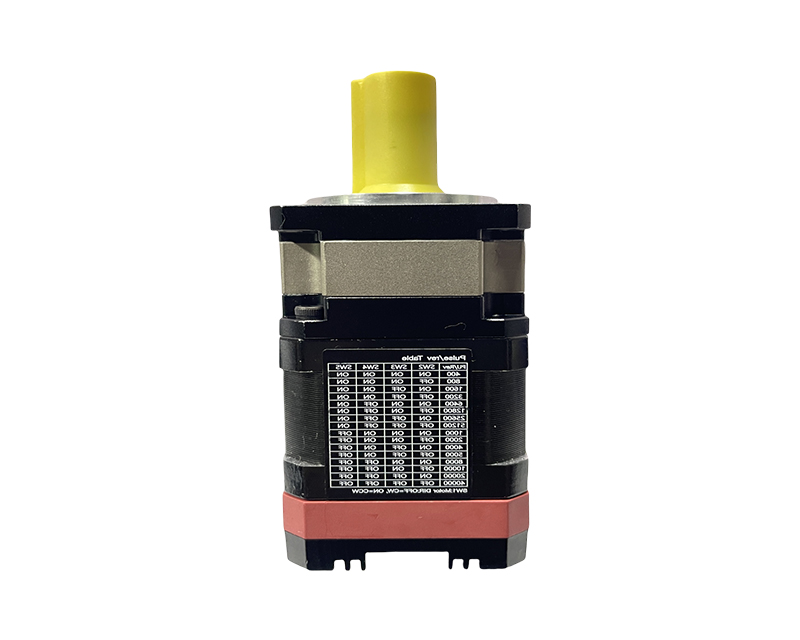

Drive integrated reduction motor

Drive integrated reduction motor

Integrated design of driver and motor simplifies system structure and improves system integration

Support multiple control modes, including pulse/direction and bus control

High-speed and stable operation; precise positioning, anti-lost steps; fast response speed

Low noise; real-time adjustment of current to reduce heat generation

product description:

The ESS42-P series integrated closed-loop stepper motor adopts the new generation of 32-bit DSP control technology and power angle control technology. The maximum speed can reach more than 3000rpm, and the high-speed torque attenuation is much lower than that of ordinary open-loop drivers. It can greatly improve the high-speed performance and torque utilization rate of the stepper motor, effectively reduce the heating and vibration of the motor, and thus improve the processing efficiency and accuracy of the machine. The load-based current control technology can effectively reduce the heating of the motor and extend the service life of the motor. The built-in in-place and alarm output signals of the driver are convenient for the host computer to monitor and control. The position out-of-tolerance alarm function ensures the safe operation of the processing equipment.

Features

New generation 32-bit DSP technology.

The higher pulse response frequency can reach 400KHZ

Small torque attenuation, speed up to 3000rpm

Built-in position and alarm outputs for easy monitoring and control

Intelligently adjust current to reduce vibration, noise and heat, and increase efficiency by 35%.

Voltage range: DC24~36V

With single and double pulse selection function, the factory default is: pulse + direction control

Excellent high speed and rigidity, perfectly integrating the advantages of both servo and stepper

With overvoltage, undervoltage, overcurrent and other protection functions

Integrated design of drive motor

Easy installation, small space, simple wiring

typical application:

PCB related equipment includes printing, AOI, panel bonding, conveying equipment, etc.; camera, fingerprint and other module related equipment; packaging equipment includes die bonding machines, wire welding machines, glue dispensing machines, spectrometers, and packaging taping machines; wire cutting and stripping machines, terminal machines, tinning machines, wire labeling machines, etc.
