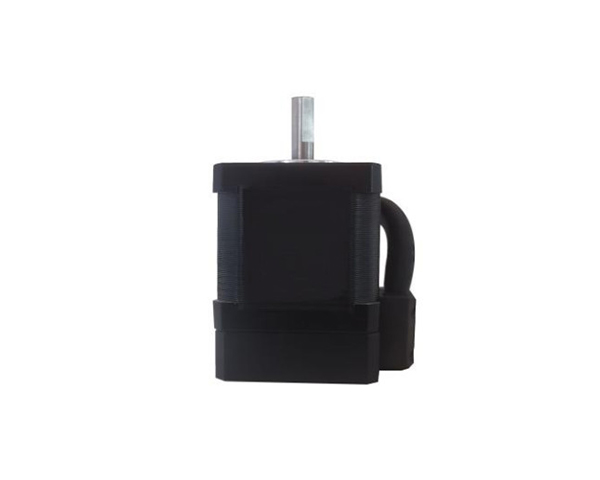

39 series 1.8° two-phase closed loop stepper motor

39 series 1.8° two-phase closed loop stepper motor

39 series 1.8° two-phase closed-loop stepper motor with encoder. A stepper motor is a mechanical device that directly converts electrical pulses into angle positions. The speed depends on the number of pulses. It and the matching stepper motor drive device together form a set of simple and low-cost open-loop system. When used with an encoder and peripheral drive system, it can become a low-cost stepper servo system (closed-loop system).

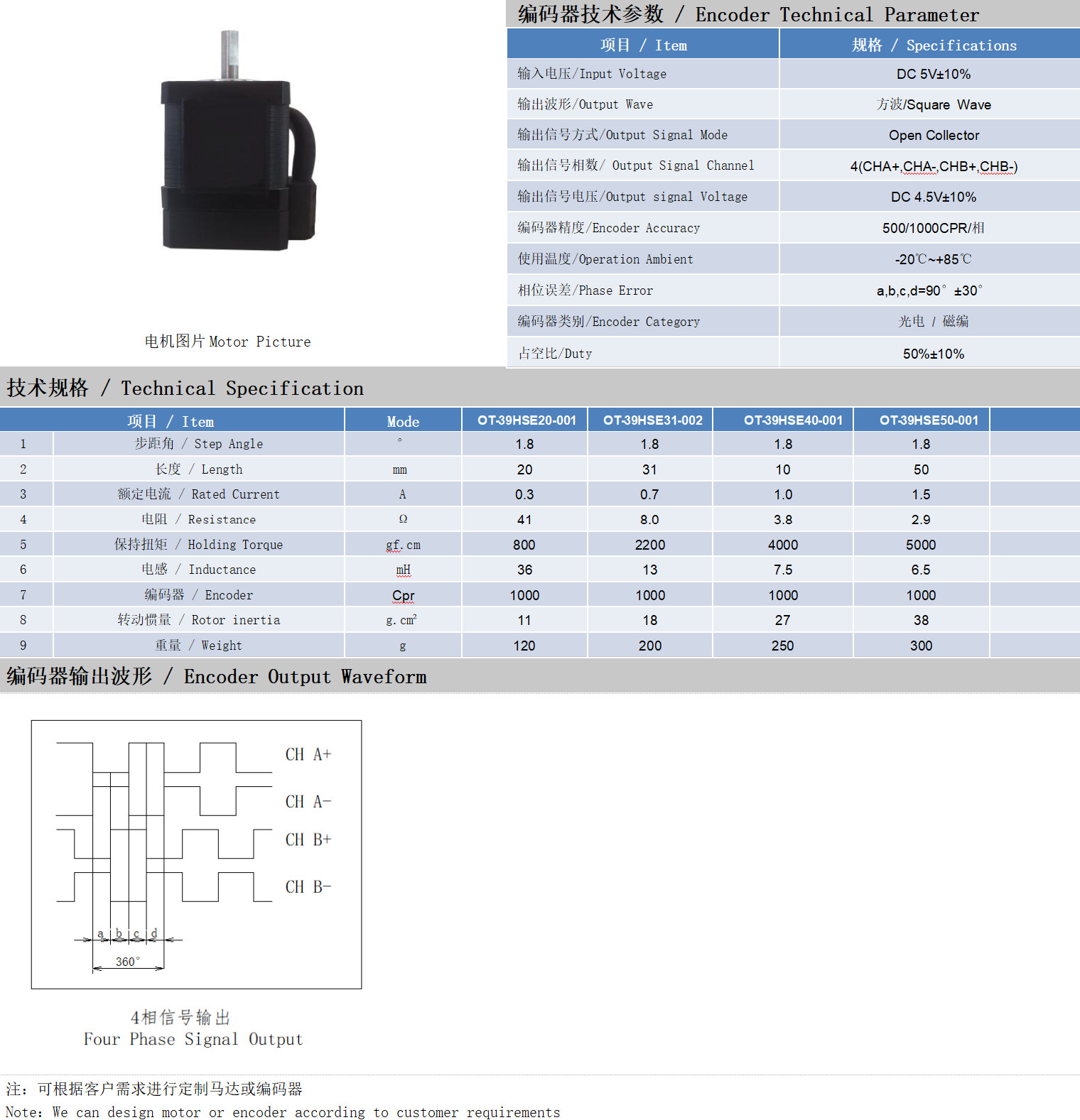

Encoder type: photoelectric/magnetic

Step angle: 1.8°

Inductance: 36mH

Holding torque: 800gf.cm

Application areas: medical, robotics, textiles, security equipment, 3D printing, etc.
